Box for Roger’s transmitter

[RadoStefanov]

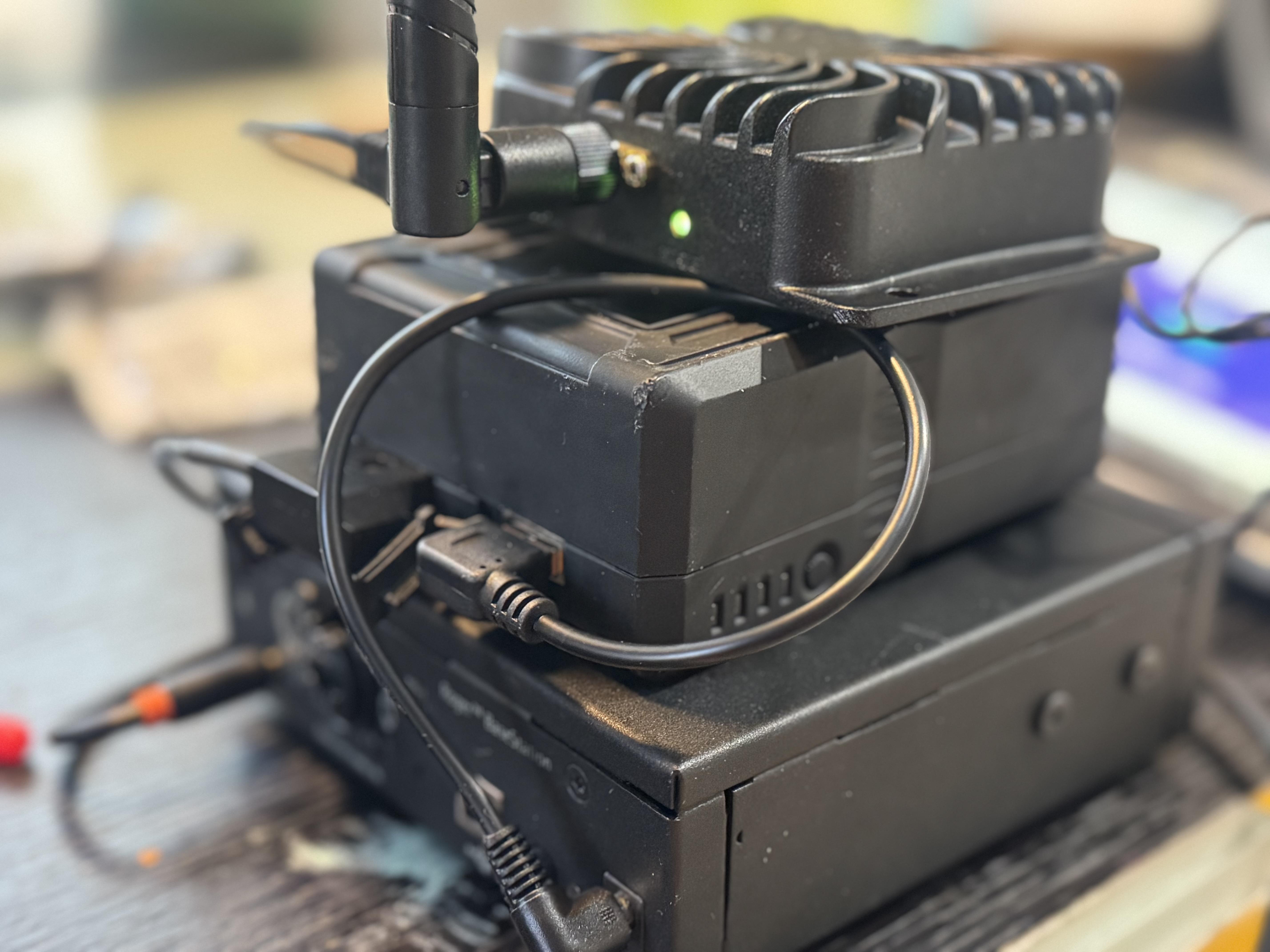

I am making a self sustained box for Rogers transmitter wifi amp and Vlock Battery. Amp works on 12V and ROgers fed from USB. I will try to make a Vlock plate with 12 to 5V converter to keep everything clean

Any ideas?

I was thinking of making a 2020 aluminum cage.

[solowiej]

Cool! I'd try to keep the amp outside the box where it can cool off, or at least mount it in a way that uses the aluminum as a heat sink. I imagine you already want that antenna outside of an aluminum box anyways.

[RadoStefanov]

1 hour ago, solowiej said:

Cool! I'd try to keep the amp outside the box where it can cool off, or at least mount it in a way that uses the aluminum as a heat sink. I imagine you already want that antenna outside of an aluminum box anyways.

This is why i got the mounting type.

I am thinking aluminum composite.

[solowiej]

1 hour ago, RadoStefanov said:

This is why i got the mounting type.

I am thinking aluminum composite.

The alum composites I played with were surprisingly heavier than a suitable plate of just aluminum.

Since all your pieces are already nicely cased I'd consider making a backplane, screw/rivet a V-mount to it with your 2 boxes and some nice cable management. You can always drop that unit into a bag or case as needed.

[Philip Perkins]

What will this rig mount to?  A bag? A cart? A camera?

[RadoStefanov]

2 hours ago, Philip Perkins said:

What will this rig mount to?  A bag? A cart? A camera?

Individual feather rig with a bag and handle. I can just drop somewhere close to set.

2 hours ago, solowiej said:

The alum composites I played with were surprisingly heavier than a suitable plate of just aluminum.

Since all your pieces are already nicely cased I'd consider making a backplane, screw/rivet a V-mount to it with your 2 boxes and some nice cable management. You can always drop that unit into a bag or case as needed.

3mm is pretty light and super strong. Way stronger and lighter than aluminum sheet.

[solowiej]

Nice. Show us what you put together!

[RadoStefanov]

2 hours ago, solowiej said:

The alum composites I played with were surprisingly heavier than a suitable plate of just aluminum.

Since all your pieces are already nicely cased I'd consider making a backplane, screw/rivet a V-mount to it with your 2 boxes and some nice cable management. You can always drop that unit into a bag or case as needed.

can you elaborate on the backplane?

as far as cables I will have what you see plus 3.5 to 3.5 right angle in the back of Roger's plus space for comtek/vRX/Urx

[solowiej]

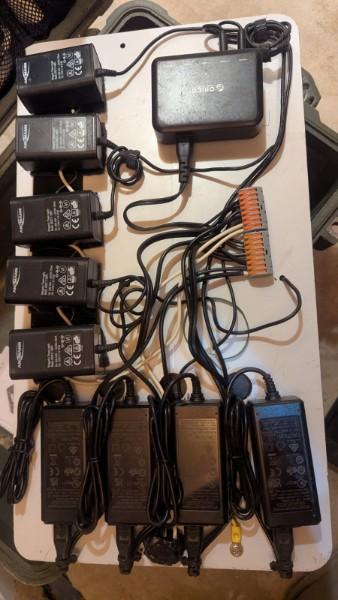

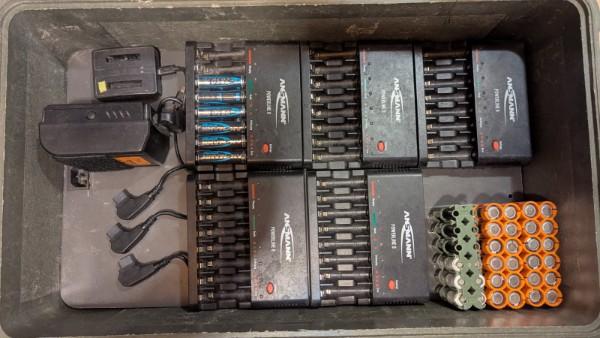

cut out a board and screw or velcro all those things to it in a nice tidy way. Maybe cut out a handle in the board. And/or give it a clamp. Or cut it to the inner dimensions of a case you like. A lot of folks do this for hotel charging cases: mine is below. My wires aren't so pretty but they're nicely contained underneath and inside the case. I haven't had any heat problems in there. I think I actually did use aluminum composite for this one. And you can use a powered or non-live v-mount just to hold the battery to your board. I use one on the outside of my bag and love it.
