Tobi A Posted September 25, 2020 Report Posted September 25, 2020 I want to make some power cables to an 833 from my smart battery. Any recommendations on a source of 4 core dc power cable? Needs to be 4 core to carry power and battery telemetry. Quote
drpro Posted September 26, 2020 Report Posted September 26, 2020 Canare and Mogami make some small 4 core cables. Quote
Tobi A Posted September 26, 2020 Author Report Posted September 26, 2020 I don't think any of their multi core cables would be heavy enough gauge, 833 can draw up to 1 amp. Also doesn't need to be shielded. Quote
Paul F Posted September 26, 2020 Report Posted September 26, 2020 I'm using Belden 1804A, 4 conductor, 28 gauge to power my equipment from the BDS. 28 gauge is rated 1.4 amps in free air. I like it because it is so thin. It is available by the foot from Markertek. Quote
Derek H Posted September 29, 2020 Report Posted September 29, 2020 How about this? https://www.pacergroup.net/unshielded-multi-conductor-cable-22-awg/ Quote
Tobi A Posted September 30, 2020 Author Report Posted September 30, 2020 Yes I've ordered something similar to try. Looking at the remote audio smart battery cup (https://www.trewaudio.com/product/remote-audio-bdshqcs2/) looks like it says 20awg, but the only 4 core 20awg I could find is only 6mm thick! Quote
Derek H Posted September 30, 2020 Report Posted September 30, 2020 They have 20 awg as well. I don’t think you’re going to find 4-core less than 6mm thick overall. https://www.pacergroup.net/unshielded-multi-conductor-cable-20-awg/ According to this chart even 22awg should be good for up to 7 amps for our purposes. How much juice do you need for this application? https://www.powerstream.com/Wire_Size.htm Quote
Tobi A Posted September 30, 2020 Author Report Posted September 30, 2020 Thanks for the chart, very handy. Yes 22 or 24 awg will do the job. Quote
Derek H Posted September 30, 2020 Report Posted September 30, 2020 Yup. I haven’t used it personally but I think this wire from pacer would be a good choice because it’s made for boats so should be high strand count, flexible and tinned. I’m about to order some 16 gauge boat cable to make heavier 4-pin battery and power supply cables with. Quote
jlempen Posted September 15, 2023 Report Posted September 15, 2023 Necrobumping this thread as I'm currently looking for such a cable. Audio star quad cables are either a bit too thick for the Hirose and TA4 connectors (Gotham GAC 4/1, Mogami W2534, etc.) or the wires are only 26AWG and thus a bit too thin for the current the SD 833 might draw when fully loaded (Mogami "Mini Quad" W2893, Sommer Cable Cicada 4, etc.). After some research, I decided that butchering a cheap USB-C to USB-C cable is the easiest way to go. According to the USB-C specification, "All USB-C cables must be able to carry a minimum of 3 A current (at 20 V, 60 W) but some can also carry high-power 5 A current (at 20 V, 100 W)." USB-C cables have two larger wires for power delivery and a few smaller wires for data and clock signals. Exactly what we are looking for. Quote
Derek H Posted September 15, 2023 Report Posted September 15, 2023 Let us know how it goes. Seems like a good idea but I’m sure there will be some unexpected snags like difficult to cut or solder metals or lots of foil shielding. Trying to buy that kind of specialty cable in small quantities can be difficult to source and expensive so it might make sense to just repurpose a high quality USB-C from Anker or one of the better brands. I did find a perfect cable for Hirose connectors from Alphawire that is super flexible and rubbery and just the right diameter for the cable clamp (the hardest part to get right with these) with two nice conductors and no shield. I could look up the model number if anyone is interested. I ordered just a sample because I think the minimum order quantity was way too much. Re-reading my posts from 2020 I can update that I did try some of the marine electrical wires I was mentioning and found it either too thick in the case of the boat cable or too stiff and prone to kinking in the case of the lighter gauge hook up wire. If you’re looking something heavier for 4-pin or Speakon connectors I can recommend canare quad speaker cable. High stand count, flexible and high quality insulation. Though there are many options for larger diameter power cable. Quote

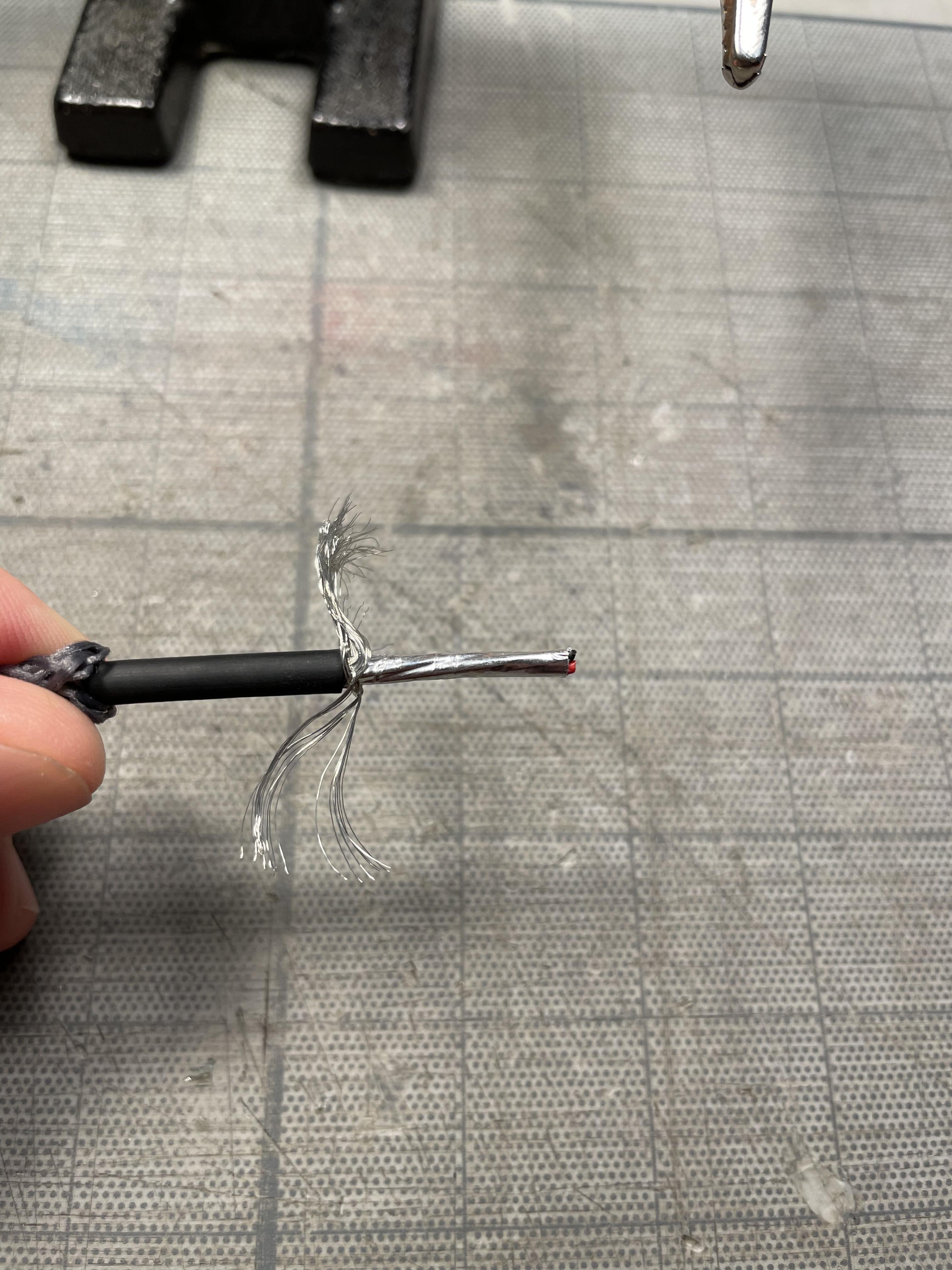

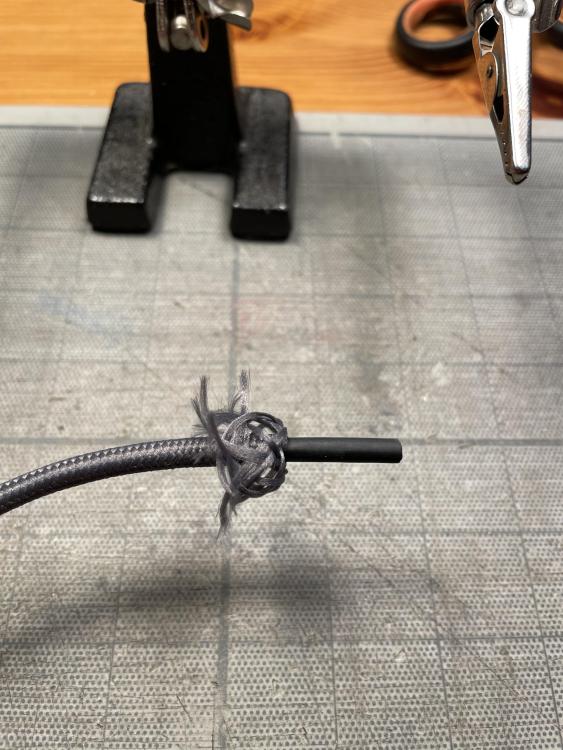

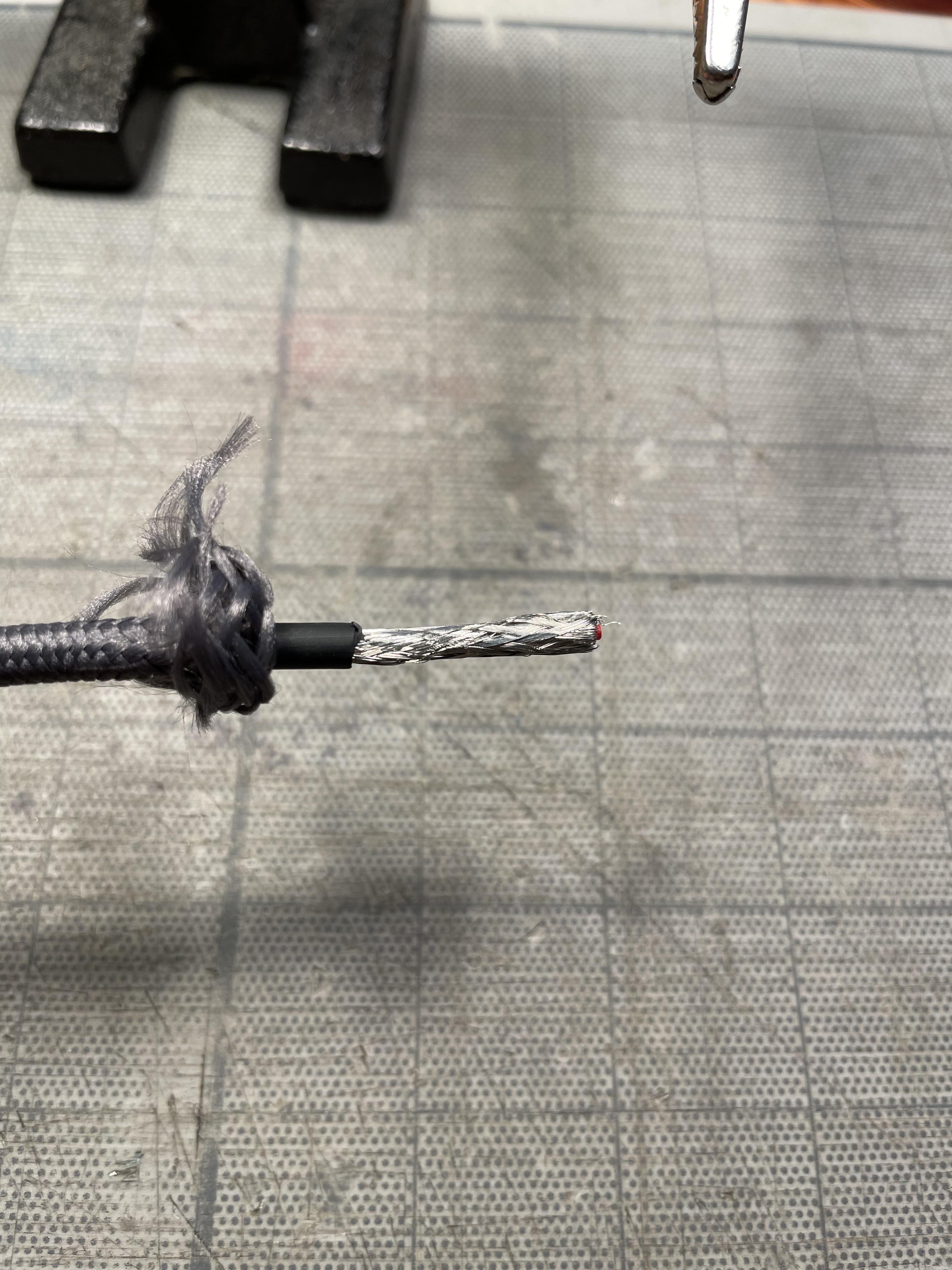

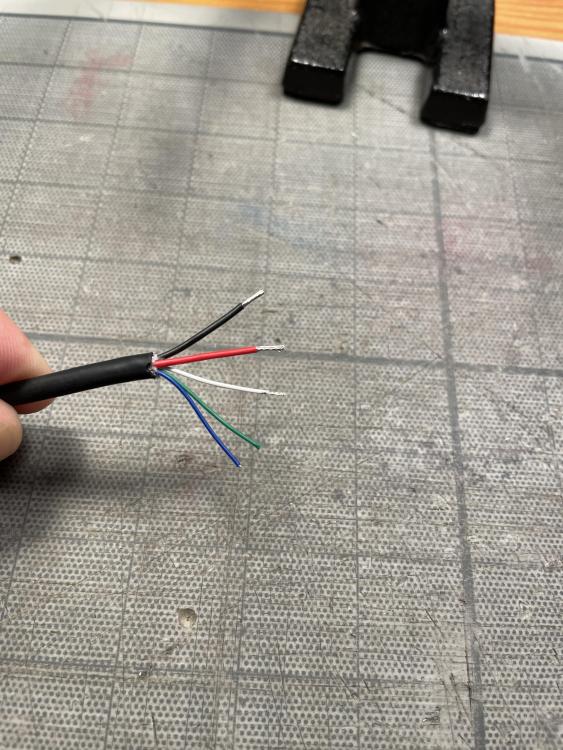

jlempen Posted September 16, 2023 Report Posted September 16, 2023 So I took the cheapest and widest available USB-C cable I could find, the $7.99 Ikea Lillhult USB-C to USB-C. This cable is rated for 3A and 480 Mbps. Edit: I could've gone even cheaper with the $6.99 Ikea Lillhult USB-A to USB-C. The specs rate it for 3A and 480 Mbps as well. Stripping the gray knitted textile braid reveals a normal cable with a diameter of approximately 4mm. Stripping the thin PVC jacket reveals a braided shield and stripping that shield reveals another layer of foil shielding, which is easy to cut away. Now we find two approx. 24AWG wires (red and black) for power delivery, and three thinner approx. 28AWG wires (white, green and blue) for data transfer. The wires are easy to twist and solder and the cable's outer diameter of approx. 4mm fits nicely in a Hirose connector, as well as a Rean or Switchcraft TA4. The rubber boot of the Switchcraft would need to be cut a bit shorter to accomodate the 4mm cable. I don't think it would be easy nor practical to keep the gray knitted textile braid, as it strips away very easily while handling the cable once the USB-C connector was cut off. Perhaps taping it down or securing it with 5mm of shrink tube while stripping and soldering the wires could help. Quote
Gabe S Posted January 30, 2024 Report Posted January 30, 2024 On 9/15/2023 at 12:01 PM, Derek H said: Let us know how it goes. Seems like a good idea but I’m sure there will be some unexpected snags like difficult to cut or solder metals or lots of foil shielding. Trying to buy that kind of specialty cable in small quantities can be difficult to source and expensive so it might make sense to just repurpose a high quality USB-C from Anker or one of the better brands. I did find a perfect cable for Hirose connectors from Alphawire that is super flexible and rubbery and just the right diameter for the cable clamp (the hardest part to get right with these) with two nice conductors and no shield. I could look up the model number if anyone is interested. I ordered just a sample because I think the minimum order quantity was way too much. Re-reading my posts from 2020 I can update that I did try some of the marine electrical wires I was mentioning and found it either too thick in the case of the boat cable or too stiff and prone to kinking in the case of the lighter gauge hook up wire. If you’re looking something heavier for 4-pin or Speakon connectors I can recommend canare quad speaker cable. High stand count, flexible and high quality insulation. Though there are many options for larger diameter power cable. Derek, Would you have that Alphawire model number handy? I need to build a bunch of Hirose cables... Quote
Derek H Posted January 31, 2024 Report Posted January 31, 2024 Alpha Wire part number 80008 2 conductor, 24ga, no shield. Ultra flexible. If you find a place that sells it by the foot let me know! Quote
