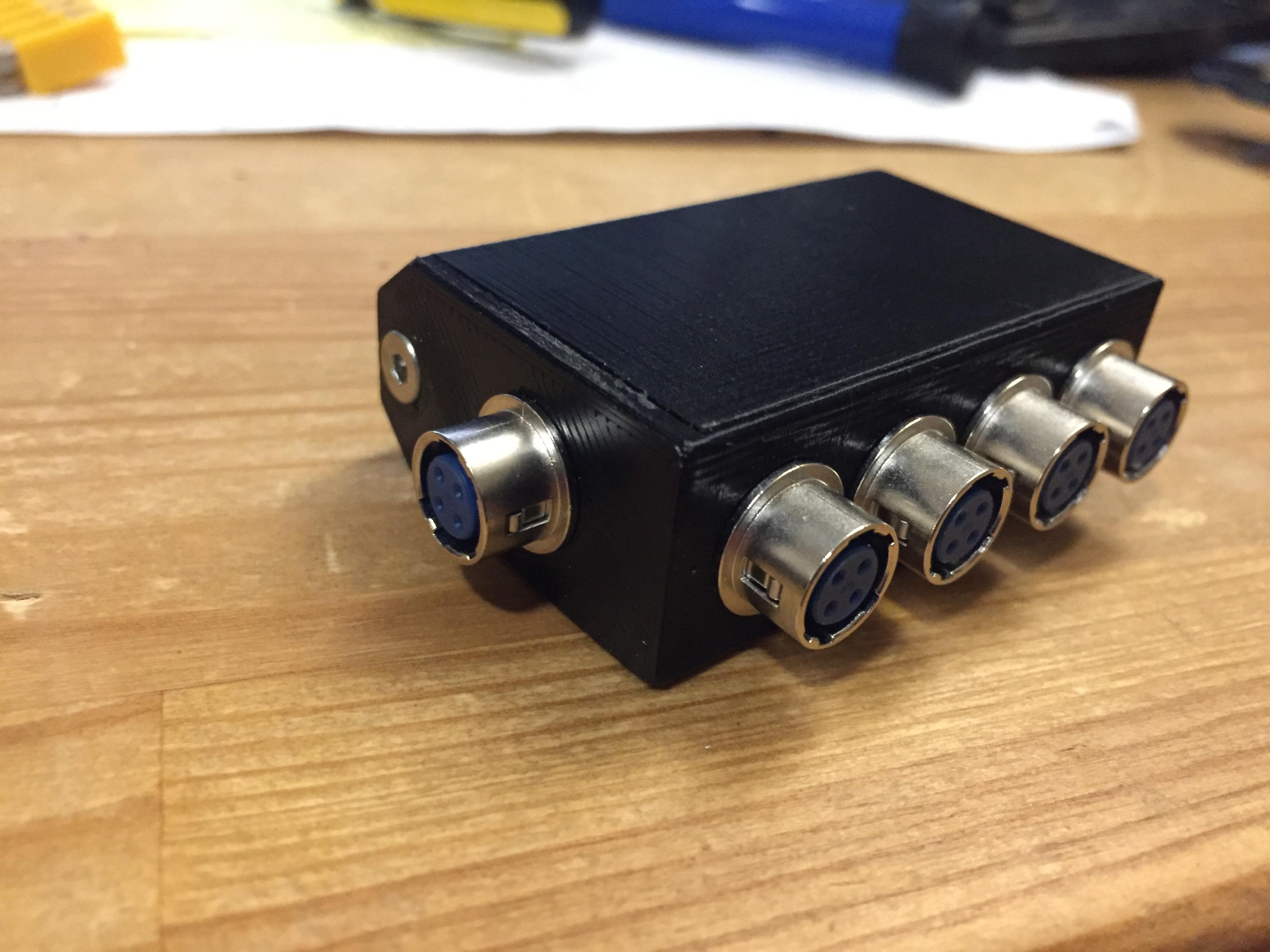

Dave Williams Report post #1 Posted June 19, 2019 Just a quick showcase of an idea I've been toying with lately. I'm thinking of this as a sort of sub-distro and it will hang off the main BDS (or could easily be stand alone if need be). It's a pretty simple device; just a poly fuse on each output. Quote Share this post Link to post Share on other sites
Shastapete Report post #2 Posted June 19, 2019 this is great, I made something similar using the switchcraft locking BDS jacks, but I've since switched over to hirose something like this is missing from my "oh shit" case Quote Share this post Link to post Share on other sites
Mike Westgate Report post #3 Posted June 20, 2019 Very neat job! Are the yellow components thermal fuses ? mike Quote Share this post Link to post Share on other sites
Dave Williams Report post #4 Posted June 20, 2019 19 minutes ago, Mike Westgate said: Very neat job! Are the yellow components thermal fuses ? mike Thanks! Yep, they are 2A PTC Resettable Fuses, although I saw that in the data sheet that a Hirose connector is only rated at 2A anyway, so if you were at the stage of tripping one or more of those fuses, I guess the input connectors would be at or past their limit. I might change them out for smaller ones at some point, at least it gives some protection for a dead short! Quote Share this post Link to post Share on other sites
Mike Westgate Report post #5 Posted June 20, 2019 Great stuff I suggested those to Remote Audio years ago as with a diode they can also offer polarity protection Cheers mike Quote Share this post Link to post Share on other sites
daniel Report post #6 Posted June 20, 2019 So compact - very nice. Better than just being small it's also as flat as anything with a hirose could be and in the bag I like that. Quote Share this post Link to post Share on other sites
Lucas Report post #7 Posted July 24, 2019 Hi there! Is there someone who by any chance has a library file for eagle PCB design of a 4pin female hirose socket? Quote Share this post Link to post Share on other sites
soundtrane Report post #8 Posted July 25, 2019 14 hours ago, Lucas said: Hi there! Is there someone who by any chance has a library file for eagle PCB design of a 4pin female hirose socket? i guess not... You will have to make one yourself... Quote Share this post Link to post Share on other sites
Lucas Report post #9 Posted July 25, 2019 Working on it... But takes up more time than expected, but I have to invest in these skills eventually. Quote Share this post Link to post Share on other sites
