soundtrane Posted March 28, 2019 Report Posted March 28, 2019 1x LEMO 6pin balanced stereo line in with 12V power output (Line input max. level +24dBu correlating to 0dBFS) 1x LEMO 5pin LTC Timecode In/Out (from website) -vin Quote
Vincent R. Posted March 28, 2019 Report Posted March 28, 2019 1 hour ago, soundtrane said: 1x LEMO 6pin balanced stereo line in with 12V power output So one could explain me the benefit of 12v power for Line level sources? are there like mic level converters/preamps out there which can deal with that? Quote
Shastapete Posted March 28, 2019 Report Posted March 28, 2019 I think it is just (over) using the connector for double duty. Stereo audio AND 12v power. Quote
Vincent R. Posted March 28, 2019 Report Posted March 28, 2019 1 hour ago, Shastapete said: I think it is just (over) using the connector for double duty. Stereo audio AND 12v power. Ah you mean switchable for 2 proposes. So OR audio in, OR 12v out to let's say a monitor. Quote
Patrick Farrell Posted March 28, 2019 Report Posted March 28, 2019 Sounds useful to power something like a Mini Papi if you're running a camera mic on board. But if it's only 6 pins, that means audio and power are sharing a ground which makes me uneasy. If it's the mini Lemo size like currently used on the Alexa Mini, that makes me doubly uneasy having 12 volts that close to audio pins. Quote
Tom Visser Posted March 28, 2019 Report Posted March 28, 2019 $100 for the first person that makes a riggable SR slot in box and dual slot NP-F battery charger. Let's make camera work for us for once. Quote
Constantin Posted March 28, 2019 Report Posted March 28, 2019 7 hours ago, Patrick Farrell said: that makes me doubly uneasy having 12 volts that close to audio pins. What about phantom power? Quote
Tom Visser Posted March 28, 2019 Report Posted March 28, 2019 2 minutes ago, Constantin said: What about phantom power? There's no phantom on the Mini. Only does line level input. Quote
Wandering Ear Posted March 29, 2019 Report Posted March 29, 2019 I find it annoying that Arri chose to have 2 different proprietary audio inputs on the different Alexa mini versions. Quote
Constantin Posted March 29, 2019 Report Posted March 29, 2019 16 hours ago, Tom Visser said: There's no phantom on the Mini. Only does line level input. No I know. I was referring to Patrick‘s comment about his worry with power running close to audio. Quote
Dave Pullmer Posted March 29, 2019 Report Posted March 29, 2019 13 hours ago, Wandering Ear said: I find it annoying that Arri chose to have 2 different proprietary audio inputs on the different Alexa mini versions. +100 Quote
Patrick Farrell Posted March 29, 2019 Report Posted March 29, 2019 10 hours ago, Constantin said: No I know. I was referring to Patrick‘s comment about his worry with power running close to audio. Phantom power is cleverly designed to be safely transported along the audio signal path. (Although it wouldn't be the brightest idea to carry phantom power through that mini Lemo.) But if 12v power accidentally shorts to one of the other pins, bad things WILL happen. Quote
Freeheel Posted March 29, 2019 Report Posted March 29, 2019 With the Mini series, Arri is obviously trying to beat RED for the title of "weirdest, most changeable, and most annoying audio inputs" ever found on a camera. At least the LF mini has the input in the back side rather than in the front face where an audio plugin interferes with the lens mounts... Cheers, Brent Calkin Quote
Patrick Tresch Posted March 29, 2019 Report Posted March 29, 2019 5 hours ago, Freeheel said: At least the LF mini has the input in the back side rather than in the front face where an audio plugin interferes with the lens mounts... Cheers, Brent Calkin You are speaking about the 8 years old model I suppose. Weapon have the audio plug on the back side since 4 years. Quote
Wandering Ear Posted March 30, 2019 Report Posted March 30, 2019 At least this version has a headphone output. Just realized the HP port is on the EVF, maybe that will work with the original mini too. That would be nice. Quote
chrismedr Posted March 30, 2019 Report Posted March 30, 2019 I don't have any first hand info on the camera but read quite a bit about it and know the old mini rather well, so here how I understand things relevant to audio: - it has 2 built-in mics for scratch audio (strange that they don't call it a stereo mic, maybe they have front-back placement or something?) - it has a sync input for black burst and tri-level sync. - improved cooling with larger fans to keep the camera quiet - the headphone out is on the EVF-2, which is a new model with new connector (and other improvements) and will not be backwards compatible. - the next Alexa Mini S35 models will include some of the LF changes, like the new view finder (probably also the audio in and scratch mics, but that's a wild guess on my side) for those interested, the most detailed report I found is on fdtimes: https://www.fdtimes.com/wp-content/uploads/2019/03/93FDTimes6.0-ARRI-ALEXA-Mini-LF.pdf also interesting that they openly mention they are working on a 4K S35 Alexa model. chris Quote
IronFilm Posted March 31, 2019 Report Posted March 31, 2019 18 hours ago, chrismedr said: also interesting that they openly mention they are working on a 4K S35 Alexa model. Yeah it is curious, and that the release date is so soon (next year!), as I bet many people would prefer a 4K S35 Arri over an LF one. Quote
Mike Matthews Posted April 15, 2019 Report Posted April 15, 2019 Just ordered some FGG.0B.306.CLAD52 connectors, time to make some new cables. Quote
MartinTheMixer Posted April 15, 2019 Report Posted April 15, 2019 On 3/29/2019 at 5:59 PM, Patrick Tresch said: You are speaking about the 8 years old model I suppose. Weapon have the audio plug on the back side since 4 years. On 3/29/2019 at 12:29 PM, Freeheel said: With the Mini series, Arri is obviously trying to beat RED for the title of "weirdest, most changeable, and most annoying audio inputs" ever found on a camera. At least the LF mini has the input in the back side rather than in the front face where an audio plugin interferes with the lens mounts... Cheers, Brent Calkin Patrick, I believe Brent was comparing one model of Arri with another model from Arri. I don't think that was a Red Weapon comment, but Brent can clarify. Thanks, Martin Quote
igladkiy Posted November 19, 2019 Report Posted November 19, 2019 On 4/15/2019 at 3:46 AM, Mike Matthews said: Just ordered some FGG.0B.306.CLAD52 connectors, time to make some new cables. Hi guys! I've just got myself a proper 6 pin lemo with flying leads and my question is where to solder a 12v cable? I want to solder a locking minijack connector and I'm kinda confused with this new 12v option Quote

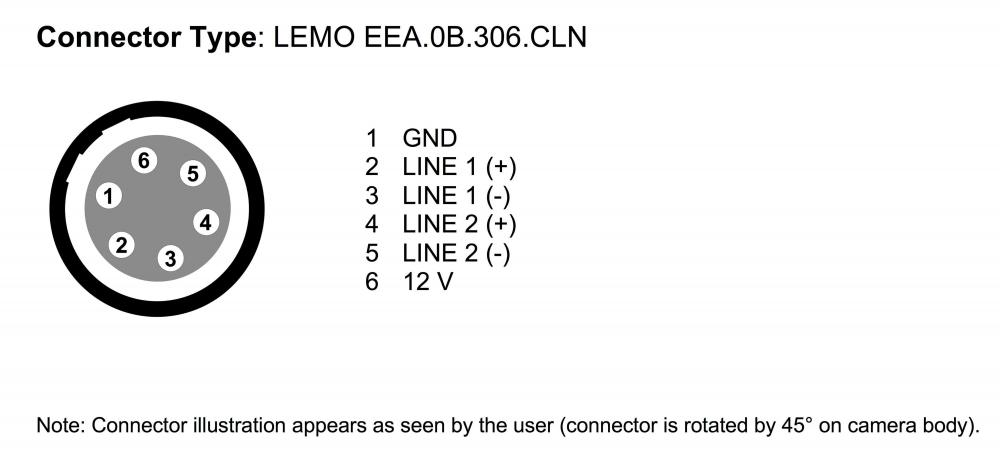

Kvark Posted November 27, 2019 Report Posted November 27, 2019 On 11/19/2019 at 11:54 AM, igladkiy said: Hi guys! I've just got myself a proper 6 pin lemo with flying leads and my question is where to solder a 12v cable? I want to solder a locking minijack connector and I'm kinda confused with this new 12v option Uhm. Get a multimeter. Identify how they soldered the lemo side. Connect to 1 and 6. Quote
bassmagnetic Posted June 30, 2021 Report Posted June 30, 2021 On 4/15/2019 at 1:46 AM, Mike Matthews said: Just ordered some FGG.0B.306.CLAD52 connectors, time to make some new cables. Just for correct info, as I made the mistake of ordering what Mike specifies, the FGG.0B.306.CLAD52 will not fit, the socket requires 2 keys (notches) as the FGG only has 1 key... the FGA version looks like it will fit, but check specs first Quote
Ian Kirton Posted March 11, 2022 Report Posted March 11, 2022 Hi, I've just bought a 6 pin lemo cable audio input cable (K2.0023988) for the Alexa Mini LF that is un-terminated and need to solder on a 5 pin XLR. I'm confused that there is both a ground wire (black) that is wired to pin 1 of the lemo and a shield that's connected to the body of the lemo. Please can anyone let me know which wires I connect to pin 1 of the XLR? Do I just connect the shield to pin 1 and discard the black ground wire? Or connect both the ground and the shield to pin 1? Regards, Ian Quote
